- 80 mm Width
- 20 mm, 24 mm, 32 mm and up to 44 mm glass application.
- Semi-concealed gasket and self-sealing laths that do not protrude onto the glass surface and offer an aesthetic appearance.
- European standard wall thickness of 2.4 mm (± 0.2).
- Aesthetically pleasing 45° jointed glazing bead.
- MASTERLINE exclusive self-sealing glazing beads that are easy to install and remove.
- Specially designed gasket that does not pass heat, sound, water and dust.
- 2° inclined water drainage channels.
- 6-chamber system for heat and sound insulation.

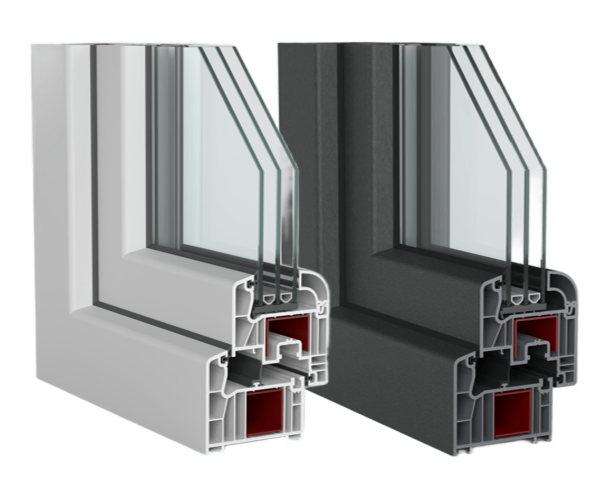

Product Info
Doors and windows to the future
Color Alternatives
Add subheading here
Technical Details
FRAME WIDTH 80 MM
THREE-LEVEL SEAL KEEPS OUT NOISE, COLD, DAMP AND WIND
UP TO 44 MM TRIPLE GLASS INSTALLATION
2,8 MM (+/- 0,2 MM) WALL THICKNESS
2° SLOPE FOR WATER DRAINAGE
Uf = 1.16 W/m²K
Uw = 0.86* W/m²K
STRONG THERMAL AND SOUND INSULATION WITH 6 CHAMBERED SYSTEM
Profiles
FRAME PROFILE
EN 70
WITH CASING FRAME PROFILE
EN 71
MULLION PROFILE
EN 72
WINDOW SASH PROFILE
EN 73
DOOR SASH PROFILE
EN 74
OUT WARD OPENING DOOR SASH PROFILE
EN 75
ADAPTER PROFILE
EN 26
Application Drawings
MOVABLE PROFILE – WINDOW SASH INSTALLATION
BOX PROFILE INSTALLATION
CORNER ADAPTER INSTALLATION
FRAME – DOOR SASH INSTALLATION
FRAME – OUT WARD OPENING DOOR SASH INSTALLATION
FRAME – DOOR SASH INSTALLATION
Glazing Beads
20 mm DOUBLE GLAZING BEAD
EN 76
24mm DOUBLE GLAZING BEAD
EN 77
32mm DOUBLE GLAZING BEAD
EN 78
44mm TRIPLE GLAZING BEAD
EN 12
Auxiliary Profiles
Φ65 PIPE PROFILE
EN 28
80×80 BOX PROFILE
EN 27
HIGHLINE CORNER ADAPTER
EN 29
UNIVERSAL COUPLING PROFILE
EN 61
30×80 RAISING PROFILE
EN 11
80 x 100 RISING PROFILE
EN 115
30 x 56 RAISING PROFILE
EN 114
30 x 80 RISING PROFILE
EN 112
20 x 80 RISING PROFILE
EN 110
